Iron weighing scales for still traders

These iron scales are designed to weigh iron for iron producers, iron traders or customers who purchase large amounts of iron. The scales are unique because of their super-robotic structure, which is designed specifically with durability in mind.

Description

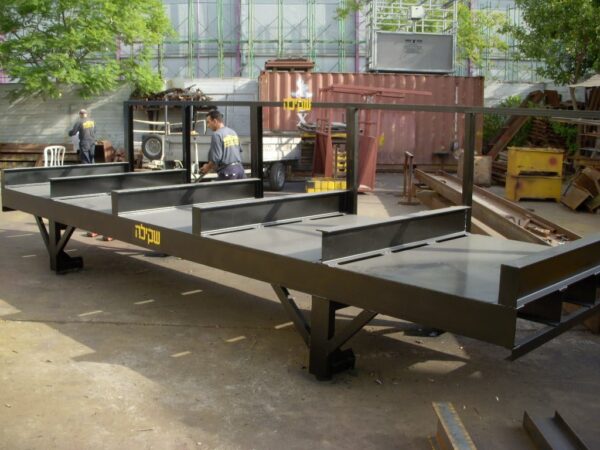

These iron weighing scales are designed to allow you to know what’s going on in your yard at both entry and exit levels. The scales must be mounted on a surface for easy laying of the iron bars using a forklift. The scales come in the form of a table at a height of about 70 cm to prevent long bars from touching the ground at the side of the scales. This height also  allows forklifts to deposit packages on the scales. All electronics (transducers) are at the bottom of the scales and protected by steel covers, with transducer cables passing through protected areas to shield them from damage. The scales also feature thick legs which allow them to be leveled on any surface.

כושרי שקילה ואבחנה סטנדרטיים לבחירה

אם הדרוש לך אינו מופיע בטבלה - מומלץ להתייעץ עם נציגנו לגבי הפתרון המתאים
דגם כושר שקילה (ק”ג) אבחנה (גרם) מידות (ס”מ)
4BR3J5478 4000 1000 150X300
4BR5J5478 4000 1000 150X500
4BR6J5478 4000 1000 150X600
6BR3J5478 6000 2000 150X300
6BR5J5478 6000 2000 150X500
6BR6J5478 6000 2000 150X600
8BR3J5478 8000 2000 150X300
8BR5J5478 8000 2000 150X300
8BR6J5478 8000 2000 150X300

Optional upgrades

Improved red LED display screen.
Connect to your PC/printer.
Software for collecting and transferring data to a spreadsheet or ERP.
Added protection to stop the gears from beatings and cut cables.
Ability to weight very high or very low weights with a range of accuracy options.

Properties

A weighing table with raised beams on the upper part and a cover in the middle section.
The surface is painted with a zinc-colored primer and an upper color.
Standard weighing capacity of 8,000-30,000 kg and accuracy of 1,000-2,000 grams according to order.
Weighing head is a J-5478 plastic suitcase with a back-lit LCD display.
The weighing head is connected with a cable to the weighing surface.
Four steel transducers with floating feet and no ball bearings.
Transducers are sealed from dust and protected from water.
Back protection against falling rods behind the weight

תמונות נוספות

משקל ברזלנים איזומטריה
משקל ברזלנים צד
משקל ברזלנים חזית
